How to add and configure Slideshow Recorder

'Slideshow Recorder' allows you to record a series of frames during a long period of time and convert these frames into a slow-motion slideshow.

Before adding the recorder, please check 'Video Recording' pre-requisites and requirements. If the 'Video Recording' feature is enabled, and your camera meets all requirements, follow the steps below to add and configure the recorder:


  • Click the Blue ' +ADD RECORDER ' button on the top right-hand side of the page.


  • In the opened dialog:
    • Enter 'Recorder Name' (for internal purposes only).
    • Select 'Recorder Type' - 'Slideshow'.
    • Press "ADD RECORDER".

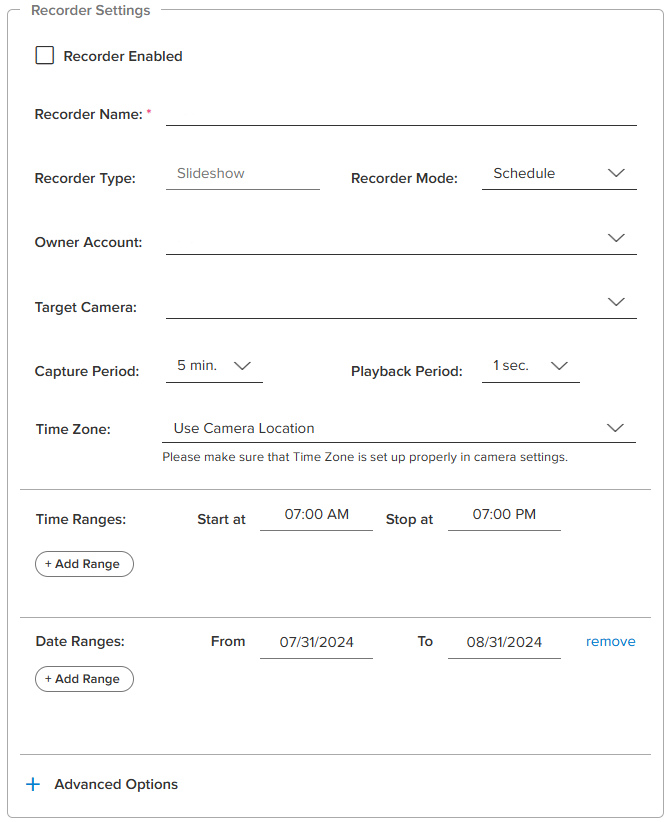

  • In the recorder settings dialog:
    • Select 'Recorder Mode'.
      • 'Manual' mode allows you to start/stop the recording manually.
      • 'Schedule' mode allows you to schedule recording session(s).
    • In 'Target Camera', select the camera you wish to record.
    • In 'Capture Period', select a period in minutes to capture a new frame during the recording.
    • In 'Playback Period', select a period in seconds to show a new frame during playback.



  • If you have selected 'Schedule' mode:
    • Select 'Start Time' and 'Stop Time' of the recording session.
    • If you wish to restrict the date range, select 'Start Date' and 'Stop Date'.
  • If you wish to prevent your viewers from controlling the camera during the recording session:

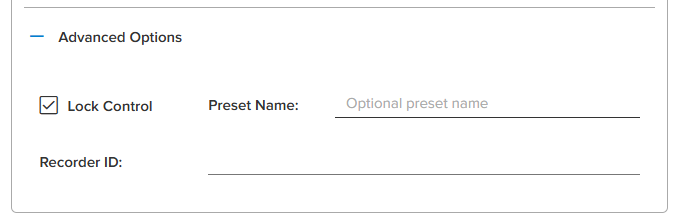

    • Expand 'Advanced Options'.
    • Check 'Lock Control'.
    • Optionally, specify the name of the preset position. The recorder will move the camera to this position automatically.
  • Ensure that the recorder configuration is correct and check the box 'RECORDER ENABLED' at the top of the dialogue.


  • Scroll down and press 'SAVE CHANGES', and go back to 'RECORDERS'.


In 'Manual' mode, you can start recording immediately by using the 'ACTIONS' menu or the recording toolbar.


See examples and learn about other recording methods in the following article:

Three ways to record a live stream from a camera.

For more information about the utilization of recordings, please review the following article:

How to utilize the recorded media content.
